Ambient interior lighting cost depends heavily on how much of the cabin you want illuminated. A simple pair of footwell lights takes far less equipment and installation work than a full cabin setup running through the dashboard, four doors, center console, door pockets, and front and rear footwells.
The type of lighting matters too.
Some systems use conventional LED strips hidden beneath the dashboard or seats. Others use thin illuminated strips that sit inside dashboard and door trim gaps for an OEM-style appearance. More advanced RGB systems can divide the interior into several lighting zones, change colors through a phone app, react to music, or run animated color sequences.
Current manufacturer pricing shows how wide the equipment range can be before installation is even considered. ORACLE Lighting currently lists a universal two-strip footwell kit at about $36, while XKGLOW lists a multi-zone four-door-and-dash ambient kit at about $500. A vehicle-specific ORACLE system for certain RAM 1500 models is also listed at about $505 and replaces 19 factory lighting boards throughout the cabin.
Those figures are manufacturer equipment prices, not Audio Vision installation quotes.
For an exact ambient interior lighting cost for your vehicle, call Audio Vision at (909) 983-4500 or use the Audio Vision contact page.
There is no single price that applies to every car.
A two-strip footwell kit can be a small project.
A full cabin system can require removing door panels, dashboard trim, center-console panels, kick panels, and other interior pieces so wiring and lighting strips remain hidden.
The biggest cost factors usually include:
Here is why the difference can become large.
XKGLOW currently lists its XKmax full-vehicle system at $499.99 before optional additions. That package includes lighting for four doors and the dashboard.
The company separately lists optional footwell, center-console, seat-back, and armrest-pocket packages.
More zones mean more lights, more cable, more connections, and more interior pieces that may need to come apart.
Footwell lighting is often the simplest place to start.
Lights are mounted below the dashboard so they cast light into the driver and passenger foot areas.
Rear footwells can also be added.
A footwell setup may use:
ORACLE currently lists its universal two-strip ambient footwell kit for $35.99.
The kit uses two 15-inch pre-wired LED strips and draws only 0.35 amp on a 12-volt circuit.
That gives you an idea of how little equipment may be needed for a simple footwell setup.
Installation is a separate matter.
A plug-in system using USB power requires less electrical work than a hidden hardwired setup that turns on automatically with the vehicle.
This usually requires the least amount of equipment.
The lights can often be hidden under the lower dashboard.
Rear lighting adds more wiring.
Depending on the vehicle, lights may be placed under the front seats or along another hidden mounting area.
Seat movement needs to be checked so wires do not get pulled, pinched, or caught in the tracks.

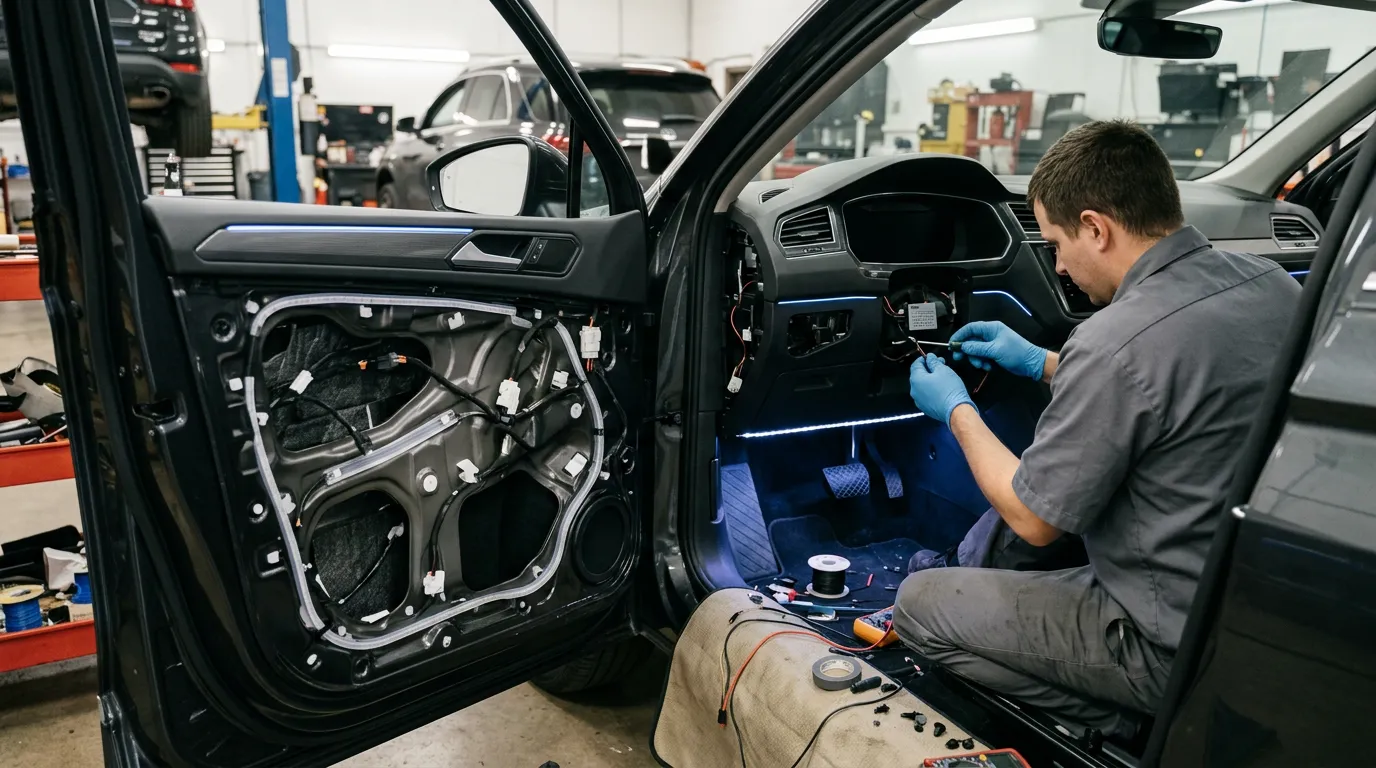

Door lighting takes more work because wiring needs to reach moving door panels.
A four-door vehicle can require lighting in:
Each door may also have more than one lighting area.
A full setup might illuminate:
ORACLE’s current RAM 1500 interior kit shows how involved a factory-style door system can become.
Its complete package replaces lighting boards for upper and lower door pockets plus door handles across four doors, along with dashboard and footwell lighting.
That kit contains 19 lighting boards.
The more door areas you want illuminated, the more installation work goes into routing and connecting everything.
For a hidden installation, door panels may need to come off.
That allows the installer to route lighting and wiring behind the panel instead of leaving loose cables visible around the edges.
The installer also has to account for:
A clean door-lighting job should still allow every original door function to operate normally.
Dashboard lighting creates the thin illuminated line many people associate with newer luxury interiors.
It can also be one of the more noticeable parts of a cabin lighting project.
A dash strip may run:
The amount of work depends on the dashboard.
Some cars have trim gaps that accept a thin lighting strip without much modification.
Other dashboards need more trim removal or a vehicle-specific lighting piece.
XKGLOW currently sells thin fiber-style strips designed to fit into dash, door, and interior trim areas.
Its standard ambient system lists installation times ranging from one to six hours depending on configuration.
That range shows how much vehicle design can affect the job.
A single dash strip and a multi-zone door-and-dash system are not the same installation.
Small zones can make a cabin look more finished.
Center-console lighting can trace the sides of the console or provide a soft glow near cupholders and storage areas.
Door-pocket lights can illuminate the storage pockets without making the whole door panel bright.
XKGLOW’s current full-cabin system offers separate lighting additions for:
Its manufacturer pricing also shows how those additions raise the equipment total.
The center-console addition is currently listed around $150, footwell lighting around $140, seat-back lighting around $230, and armrest-pocket lighting around $110.
Again, those are current XKGLOW equipment prices rather than Audio Vision quotes.
They show why a large multi-zone project can cost much more than two lights under the dashboard.
A full cabin build combines several areas into one controlled lighting system.
It may include:
The system may also divide these areas into separate zones.
XKGLOW states that its current controller can operate multiple lighting zones and lets users change patterns, brightness, colors, and other settings through an app.
A larger system creates a more complete look, but the installation can require substantial interior disassembly.
That may mean taking apart:
This is one reason ambient interior lighting cost rises quickly as the system expands.
You are paying for more than additional LEDs.
More zones mean more interior work.
The type of light source changes the appearance.
LED strips are useful for areas where the light source can remain hidden.
Common locations include:
The light reflects off nearby surfaces rather than requiring the strip itself to be visible.
Thin ambient strips are designed to create a narrow line of light along trim.
These work well for:
XKGLOW’s current interior system uses ultra-thin strips with 144 LEDs per meter and allows them to be trimmed for different interior locations.
This style can create a more factory-like light line when fitted carefully.
A single-color system is simpler.
RGB lighting lets you select many colors from one system.
Addressable RGB systems can go farther and create moving color patterns.
Current XKGLOW equipment supports:
ORACLE also offers ColorSHIFT RGB equipment with app control for supported vehicle applications.
Those functions require compatible lighting and a controller.
That changes equipment cost compared with a straightforward white or blue LED strip.
Ask yourself how often you will actually use animated effects.
Some drivers want a calm single-color glow that matches the dashboard.
Others want color changes for shows, meets, or weekend use.
Lighting components can be relatively inexpensive compared with the work required to hide them.
Take a door-lighting project.
The technician may have to:
Now repeat that process on four doors.
Dashboard lighting can add another group of trim pieces.
Center-console lighting adds more disassembly.
This is why two customers using similar LED technology can receive very different installation quotes.
The number of illuminated areas matters.
Some interiors are much easier to light than others.
A vehicle with simple trim gaps may accept thin ambient strips easily.
Another car may have tight molded trim with few suitable mounting points.
The installer also needs to work around:
Door design can have a large effect on labor.
A two-door coupe only has two main door panels.
A four-door SUV has twice as many.
A vehicle with factory ambient lighting may also present the option of changing existing light sources rather than adding new strips.
Some vehicles already have interior ambient lighting from the manufacturer.
In those cases, an aftermarket project may replace the existing light sources rather than create new lighting locations.
ORACLE’s 2019-2024 RAM 1500 ColorSHIFT system is a good illustration.
The current complete kit replaces 19 original lighting circuit boards across:
ORACLE lists the complete kit at $504.50 and states that installation takes about two hours for supported trucks.
The system requires the vehicle to already have the applicable factory ambient-lighting package.
This is why vehicle information matters.
A kit that works as a direct replacement on one trim may not fit another version of the same truck.
Not every interior lighting kit connects to the vehicle the same way.
Some inexpensive footwell kits use:
Super Bright LEDs currently sells a four-strip RGB footwell kit powered by USB.
A setup like this can be easy to install, but a visible USB cable may not provide the appearance you want from a professional custom interior.
A hardwired setup can hide the electrical connection.
That may allow the lights to operate with ignition power or another selected circuit.
Hardwiring takes more installation work because the technician needs to determine where power and ground should come from.
Yes, depending on the system and wiring method.
Some ambient systems can be connected so they operate with:
XKGLOW states that its current system can connect to door or courtesy-light circuits for welcome-style lighting behavior.
The exact setup depends on the vehicle.
A professionally installed system should also avoid draining the battery when the car is parked.
Tell the installer how you want the lighting to behave.
Do you want it to come on whenever the ignition is on?
Do you want a door-opening effect?
Do you want complete manual control from an app?
Those choices can change the wiring plan.
Good ambient lighting is often more about what you cannot see than what you can.
During daylight, the installation should not look like a collection of loose LED strips.
Look for:
Brightness matters too.
Ambient lighting does not have to flood the entire interior.
A restrained glow along the dash, doors, and footwells can often look closer to factory lighting.
Choose a system that lets you adjust brightness if you plan to use it while driving at night.
Start with how much of the cabin you want to change.
Good for drivers who want:
Good for drivers who want:
Good for drivers who want:
Good for drivers who want:
Bottom line, the right system is the one that matches how much interior work you want and how you want the finished cabin to look.
Audio Vision provides automotive lighting services from its Montclair, CA shop and lists ambient lighting among its interior and exterior lighting work.
Drivers can also ask about car LED lighting and other custom interior projects.
Audio Vision is located at:
Audio Vision
5521 Holt Blvd
Montclair, CA 91763
Phone: (909) 983-4500
Hours: Monday through Sunday, 9:00 AM to 7:00 PM
The shop serves drivers from Montclair, CA, Ontario, CA, Pomona, CA, Rancho Cucamonga, CA, Claremont, CA, Chino, CA, Chino Hills, CA, and nearby Inland Empire communities.
Your final ambient interior lighting cost will depend on your vehicle and the areas you want illuminated.
Before contacting the shop, think about whether you want:
Call (909) 983-4500 or contact Audio Vision online with your year, make, model, and desired lighting areas to request an installation quote.
The total depends on the lighting areas, equipment, controller, vehicle, and installation work. Current manufacturer examples range from roughly $36 for a simple two-strip ORACLE footwell kit to around $500 for multi-zone or vehicle-specific equipment before professional installation. Contact Audio Vision for a quote tied to your vehicle.
Usually. Footwell systems need fewer lights and often require less interior disassembly. Door and dashboard lighting can require panel removal, longer wiring routes, added lighting zones, and more time fitting the light strips.
Yes, many four-door vehicles can use door ambient lighting. The installer needs to determine how the strips will fit and how wiring can be routed through each door while staying clear of windows, locks, speakers, and factory harnesses.
Yes, compatible RGB systems can use Bluetooth smartphone apps. Current systems from XKGLOW and ORACLE offer app-based color and brightness control, while some setups also provide animated lighting modes.
Some systems can be wired to work with courtesy-light or door circuits. XKGLOW currently lists sensor connections that can be tied into door or courtesy lighting for welcome-style effects. Vehicle wiring determines what can be supported.
Yes. Footwell strips cast light below the dashboard or seats. Factory-style ambient systems can place thin light lines through doors and dashboard trim or replace original lighting boards in vehicles already fitted with factory ambient lighting.
Audio Vision provides automotive lighting work at 5521 Holt Blvd, Montclair, CA 91763 and serves nearby Ontario, CA and Pomona, CA. Call (909) 983-4500 or use the Audio Vision contact page to discuss footwell, door, dashboard, console, and multi-zone interior lighting.
